| Plunger Stroke mm | Maximum Chuck Capacity mm Round | Maximum Chuck Capacity mm Hexagon | Maximum Chuck Capacity mm Square | Max. D.B. Pull Kn kgf | Max. Clamping Force Kn kgf | Max. Speed min-1 rpm |
|---|---|---|---|---|---|---|
| 7 | 3 ~ 42 | 6 ~ 36 | 6 ~ 29 | 24.5 2500 | 52.0 5300 | 6000 |
| Dimensional drawings and data will be updated soon. |
Click a model to view its 2D drawing. If unavailable, you will be directed to our enquiry page.
| Model | 2D Drawing |
|---|---|

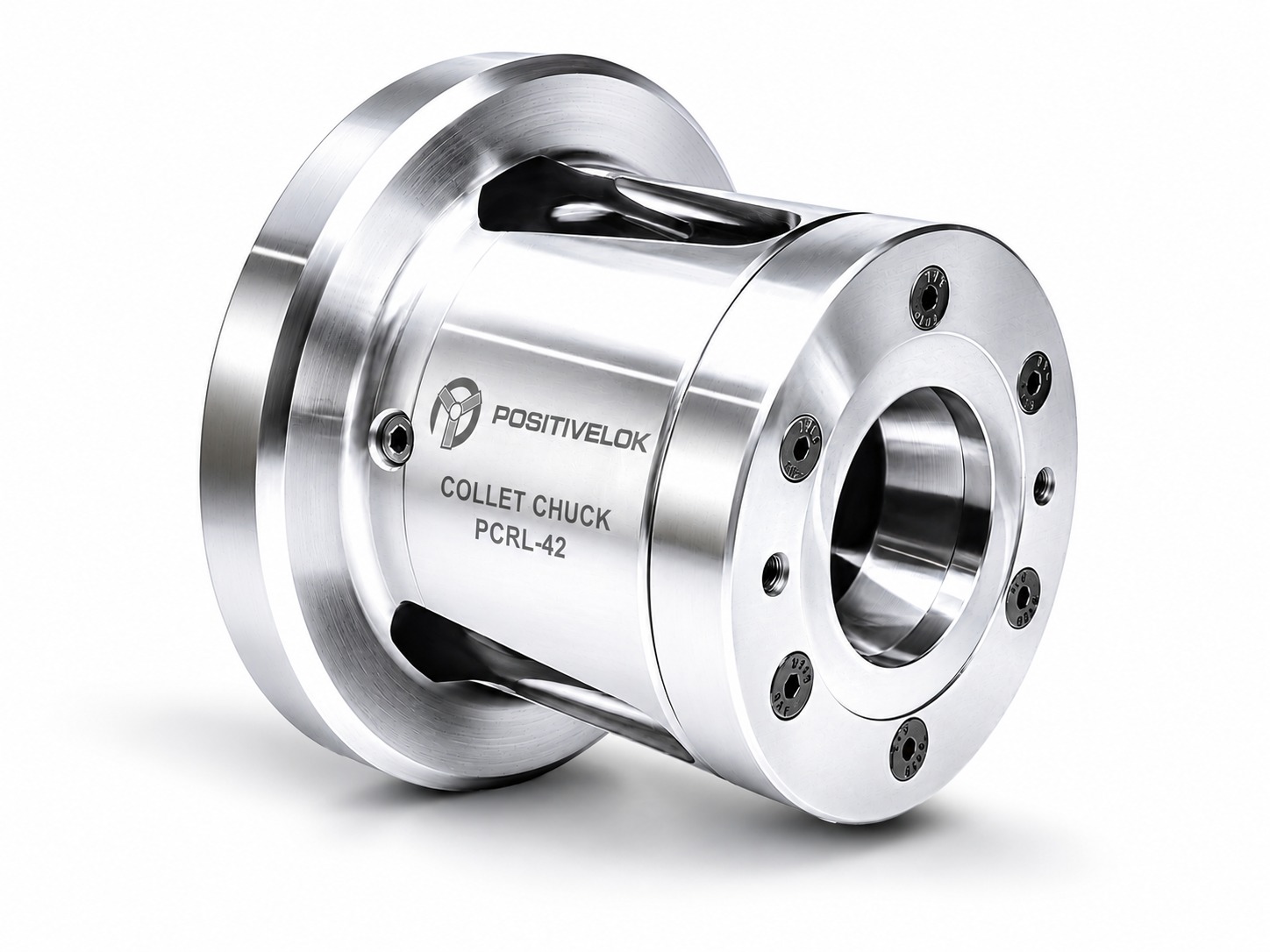

| Collet Chuck |  |
