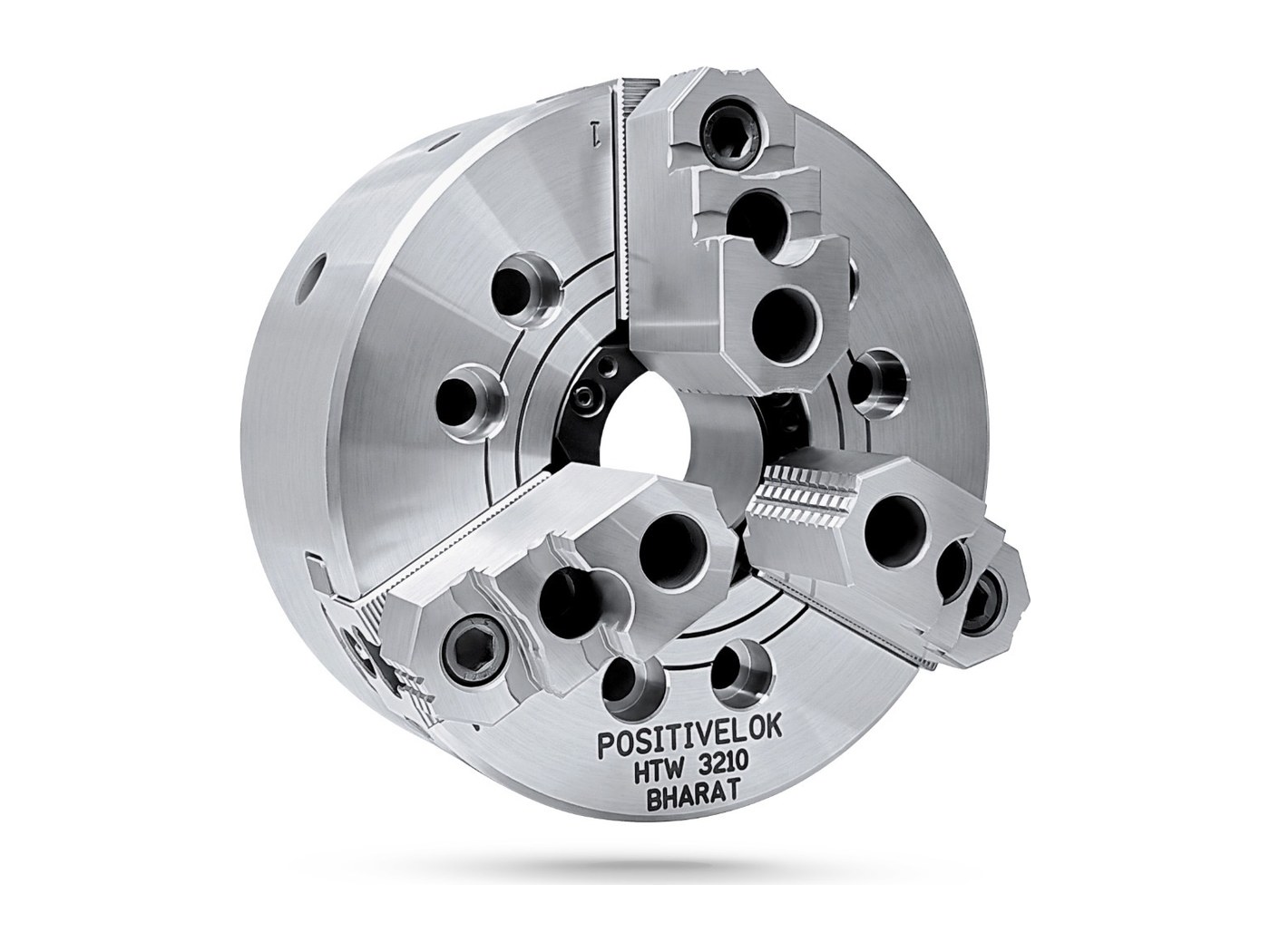

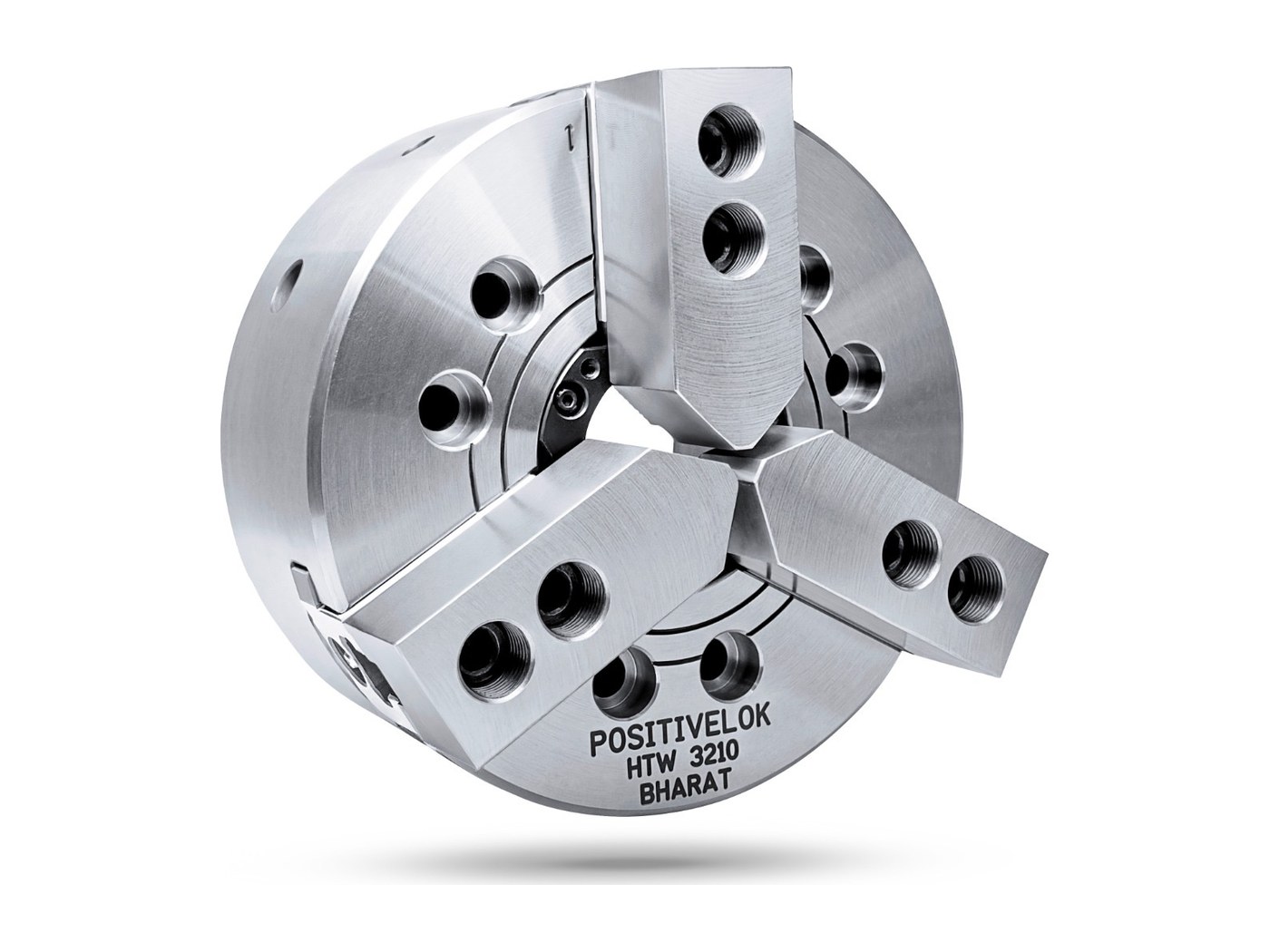

Open Center Power Chuck (HTW-3 Jaw)

Specifications

Part No.	A	B	C H6	D	E	F	G Max	G Min	H	J	L Max.	M	N	P	Q Max	Q Min	R Max	R Min	S	U	W
HTW - 3135	135	61	110	82.55	4 - M10	34	1	-9	17	12	M40 x 1.5	34	60	14	19.75	7.75	26.5	23.8	32	10	4
HTW - 3170	169	82	140	104.8	4 - M10	45	11	-1	19	20	M55 x 2.0	38	80	20	22.75	9.25	32	29.25	35	12	6
HTW - 3210	210	92	170	133.4	4 - M12	52	14.5	-1.5	20.5	30	M60 x 2.0	40	100	25	29.75	14.75	38.7	35	38	14	6
HTW - 3254	254	101	220	171.4	4 - M16	75	8.5	-10.5	25	45	M85 X 2.0	50	120	30	33.75	14.25	51	46.6	40	16	6
HTW - 3304	304	111	220	171.4	4 - M16	91	8	-15	28	50	M100 x 2.0	50	140	30	45.75	15.75	61.3	66	50	18 / 21	6

Part No..	Thru Hole	Jaw Stroke	Plunger	Gripping Dia External		Max. Draw Bar		Max. Gripping		Max. Speed	Net weight with soft top jaws	Moment of Inertia	Max. Pressure
	Thru Hole	Diameter	Stroke	mm		Pull Force		Force		Max. Speed	Net weight with soft top jaws	Moment of Inertia	Mpa
	mm	mm	mm	Max.	Min.	kN kgf		kN kgf		min -1	kg	kg.m3	kgf/cm2
HTW - 3135	34	5.4	11	135	12	11.7	1193	24	2447	7000	6.5	0.006	2.38	24.3
HTW - 3170	45	5.5	12	170	14	14.5	1479	38	3875	6000	14	0.017	1.85	18.9
HTW - 3210	52	8.6	16	210	14	23.2	2366	57.3	5843	5000	22	0.056	1.8	18.4
HTW - 3254	75	8.8	19	254	31	28.5	2906	74	7546	4200	32	0.165	1.8	18.4
HTW - 3304	91	7.4	16	304	34	36.7	3742	96	9789	3300	56	0.308	1.81	18.5

Click a model to request its 2D drawing — our team will share it with you.
