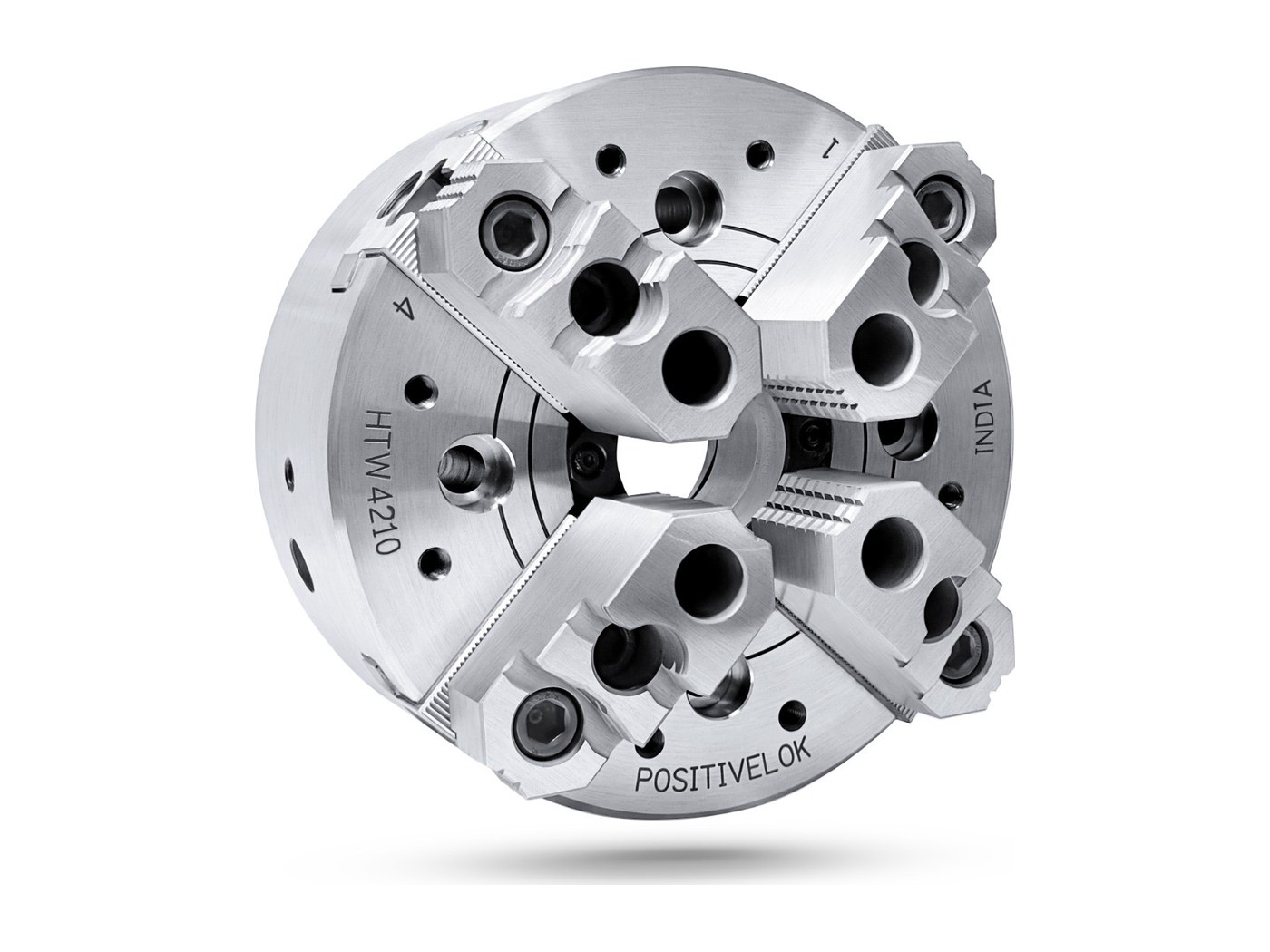

| Part No. | A | B | C H6 | D | E | F | G Max | G Min | H | J | L Max. | M | N | P | Q Max | Q Min | R Max | R Min | S | U | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HTW - 4170 | 169 | 82 | 140 | 104.8 | 6 - M10 | 45 | 11 | -1 | 19 | 20 | M55 x 2.0 | 38 | 80 | 20 | 22.75 | 9.25 | 32 | 29.25 | 35 | 12 | 6 |
| HTW - 4210 | 210 | 92 | 170 | 133.4 | 6 - M12 | 52 | 14.5 | -1.5 | 20.5 | 30 | M60 x 2.0 | 40 | 100 | 25 | 29.75 | 14.75 | 38.7 | 35 | 38 | 14 | 6 |
| HTW - 4254 | 254 | 101 | 220 | 171.4 | 6 - M16 | 75 | 8.5 | -10.5 | 25 | 45 | M85 X 2.0 | 50 | 120 | 30 | 33.75 | 14.25 | 51 | 46.6 | 40 | 16 | 6 |
| HTW - 4304 | 304 | 111 | 220 | 171.4 | 6 - M16 | 91 | 8 | -15 | 28 | 50 | M100 x 2.0 | 50 | 140 | 30 | 45.75 | 15.75 | 61.3 | 66 | 50 | 18 / 21 | 6 |
| Part No.. | Thru Hole | Jaw Stroke | Plunger | Gripping Dia External | Max. Draw Bar | Max. Gripping | Max. Speed | Net weight with soft top jaws | Moment of Inertia | Max. Pressure | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter | Stroke | mm | Pull Force | Force | Mpa | |||||||||
| mm | mm | mm | Max. | Min. | kN kgf | kN kgf | min -1 | kg | kg.m3 | kgf/cm2 | ||||
| HTW - 4170 | 45 | 5.5 | 12 | 170 | 14 | 14.5 | 1479 | 38 | 3875 | 6000 | 13.5 | 0.017 | 1.85 | 18.9 |
| HTW - 4210 | 52 | 8.6 | 16 | 210 | 14 | 23.2 | 2366 | 57.3 | 5843 | 5000 | 23 | 0.056 | 1.8 | 18.4 |
| HTW - 4254 | 75 | 8.8 | 19 | 254 | 31 | 28.5 | 2906 | 74 | 7546 | 4200 | 32 | 0.165 | 1.8 | 18.4 |
| HTW - 4304 | 91 | 7.4 | 16 | 304 | 34 | 36.7 | 3742 | 96 | 9789 | 3300 | 57.5 | 0.308 | 1.81 | 18.5 |
Click a model to request its 2D drawing — our team will share it with you.
| Model | 2D Drawing |
|---|---|
| HTW-4170 |  |
| HTW-4210 | |
| HTW-4254 | |
| HTW-4304 | |
