Soft Jaws

Products / Soft Jaws

Soft Jaws

SJ Series

Create enquiry Download catalogue

Product Details

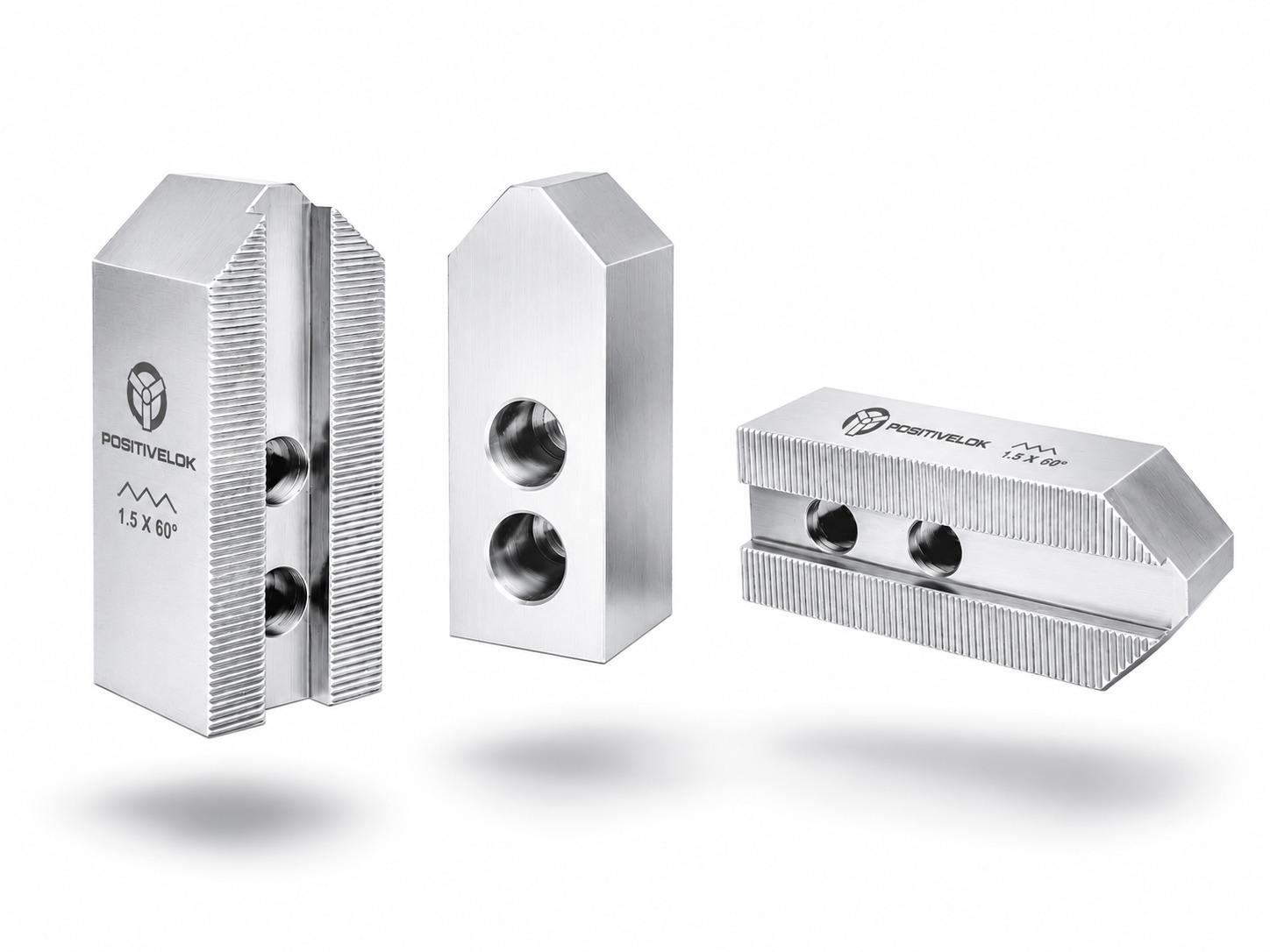

Custom and standard soft jaws, machined to suit your workpiece for gentle and accurate gripping.

Specifications

Standard - Metric Soft Jaws

Sr No.	Part Code	S1	S2	S3	S4	S5	S6	S7	S8	S9	S10	S11	S12	Serration
1	SJ/135	65	25	32	10	14	3	14	7	15	9	29	M8	1.5 x 60	1/16 x 90
2	SJ/170	80	30	40	12	20	6	15	7	17	11	27	M10	1.5 x 60	1/16 x 90
3	SJ/210	100	40	40	14	25	8	19	7	19	13	27	M12	1.5 x 60	1/16 x 90
4	SJ/254	120	50	40	16	30	8	25	7	19	13	36	M12	1.5 x 60	1/16 x 90
5	SJ/304	150	50	50	18	30	9	29.5	8	25	17	34	M16	1.5 x 60	1/16 x 90
6	SJ/304A	150	50	50	21	30	9	29.5	8	25	17	34	M16	1.5 x 60	1/16 x 90

Standard - Inch Soft Jaws

Sr No.	Part Code	S1	S2	S3	S4	S5	S6	S7	S8	S9	S10	S11	S12	Serration
1	SJ/135	65	25	32	10	14	3	14	7	15	9	29	M8	1.5 x 60	1/16 x 90
2	SJ/165	80	30	40	12	19	6	15	7	17	11	27	M10	1.5 x 60	1/16 x 90
3	SJ/200	100	40	40	17	19	8	19	7	19	13	27	M12	1.5 x 60	1/16 x 90
4	SJ/250	120	50	40	21	25	8	25	7	19	13	36	M12	1.5 x 60	1/16 x 90
5	SJ/300	150	50	50	18	25	9	29.5	8	25	17	34	M16	1.5 x 60	1/16 x 90
6	SJ/300A	150	50	50	21	25	9	29.5	8	25	17	34	M16	1.5 x 60	1/16 x 90

Special - Metric Soft Jaws

Sr No.	Part Code	S1	S2	S3	S4	S5	S6	S7	S8	S9	S10	S11	S12	Serration
1	SJ/135	65	25	40	10	14	3	14	7	15	9	29	M8	1.5 x 60	1/16 x 90
2	SJ/170	80	30	50/63/75/100	12	20	6	15	7	17	11	27	M10	1.5 x 60	1/16 x 90
3	SJ/210	100	40	40/63/75/100	14	25	8	19	7	19	13	27	M12	1.5 x 60	1/16 x 90
4	SJ/254	120	50	40/63/75/100	16	30	8	25	7	19	13	36	M12	1.5 x 60	1/16 x 90
5	SJ/304	150	50	50/63/75/100	18	30	9	29.5	8	25	17	34	M16	1.5 x 60	1/16 x 90
6	SJ/304A	150	50	50/63/75/100	21	30	9	29.5	8	25	17	34	M16	1.5 x 60	1/16 x 90

Special - Inch Soft Jaws

Sr No.	Part Code	S1	S2	S3	S4	S5	S6	S7	S8	S9	S10	S11	S12	Serration
1	SJ/135	65	25	40	10	14	3	14	7	15	9	29	M8	1.5 x 60	1/16 x 90
2	SJ/165	80	30	40/63/75/100	12	19	6	15	7	17	11	27	M10	1.5 x 60	1/16 x 90
3	SJ/200	100	40	40/63/75/100	17	19	8	19	7	19	13	27	M12	1.5 x 60	1/16 x 90
4	SJ/250	120	50	40/63/75/100	21	25	8	25	7	19	13	36	M12	1.5 x 60	1/16 x 90
5	SJ/300	150	50	50/63/75/100	18	25	9	29.5	8	25	17	34	M16	1.5 x 60	1/16 x 90
6	SJ/300A	150	50	50/63/75/100	21	25	9	29.5	8	25	17	34	M16	1.5 x 60	1/16 x 90

Dimensions

Dimensional drawings and data will be updated soon.

Downloads

Click a model to request its 2D drawing — our team will share it with you.

Model	2D Drawing
SJ/135
SJ/170
SJ/210
SJ/254
SJ/304
SJ/304A
SJ/165
SJ/200
SJ/250
SJ/300
SJ/300A
